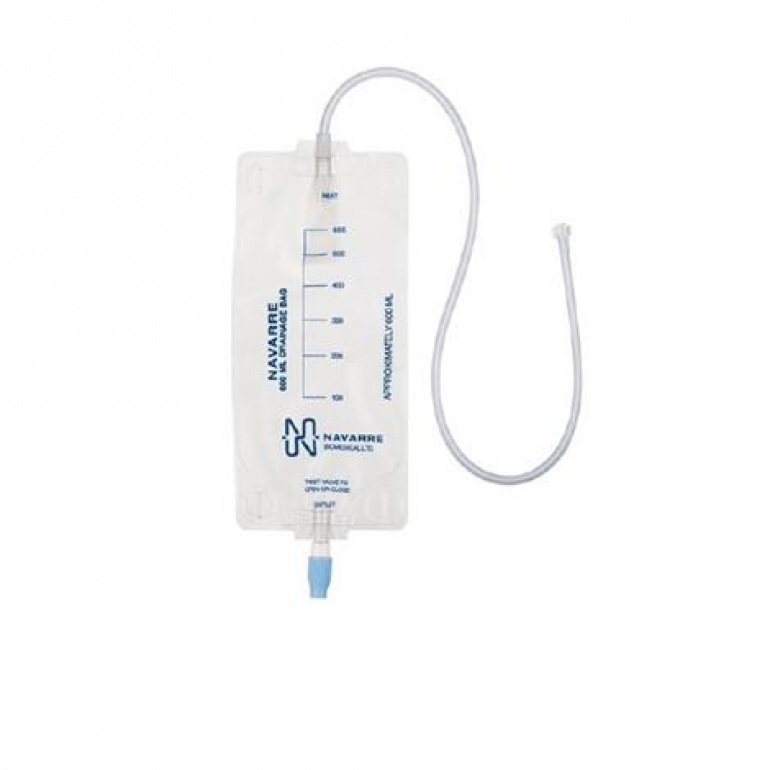

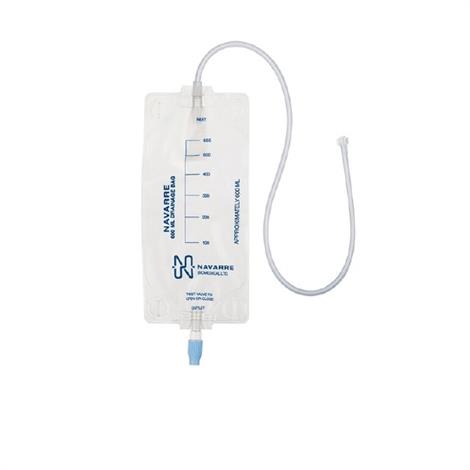

Bag, Bard Navarre Universal Gravity Drainage Bag

Benefits of Bard Navarre Drainage Bag

• 600ml
• Anti-reflux Valve
• Latex-free
• Sterile

Why choose Navarre Universal 600ml Gravity Drainage Bag?

• Drainage bag can be worn around the waist, or used as a leg bag
• Easy Connection to Catheters
• Luer Connection
• Reduced Disposal Cost
• Reduced Backflow
• Single Use

Bard Navarre Gravity Drainage Bag User Manual


How to use Gravity Drainage Bag Navarre 600 mL?

1. Remove the drainage bag from the pouch and ensure the luer connection remains sterile.
2. Close the emptying valve on bottom side of bag by rotating clockwise.
3. Using aseptic technique, securely attach the drainage bag inlet tube to the drainage catheter. For some procedures, it may be beneficial to place a stopcock between the drainage bag and drainage catheter. Do not over tighten the luer connection.
4. The drainage bag is attached to the patient waist or leg or to the patient bed using the elastic/Velcro belt supplied. This bag must be suspended below the drainage site for gravity flow. Failure to do this may slow drainage and potentially increase the risk of contamination of the collection system.

Note: The connection to the drainage catheter must be made using appropriate aseptic technique. The attached 24 inch (60.96 cm) line may be cut and fitted to the appropriate length. An extra luer lock is included to secure to the line if cut.

Warnings:

• Before using, inspect the drainage bag for imperfections that would prevent proper function. If the bag is damaged, Do Not Use.
• After or during use, the product may be a potential biohazard. Handle and dispose of in accordance with accepted medical practices and applicable local, state and federal laws and regulations.
• Intended for single use. Do Not Reuse. Reuse and/or repackaging may create a risk of patient or user infection, compromise the structural integrity and/or essential material and design characteristics of the device, which may lead to device failure and/or lead to injury, illness or death of the patient

Precautions:

• Drainage bag must always be positioned below the drainage site to maintain drainage.
• Never allow the tubing to kink. Excess tubing should be arranged to permit straight line drainage or coiled in a manner that does not allow the tubing to kink or fall below the level of the drainage bag.
• Periodic observation of the system should be made to ensure that fluid is flowing freely and is not obstructed.
• Drain or replace the bag as needed to maintain drainage collection.
• Do not use after expiration date.
