Prairie View Industries has a full line of handicap ramps. PVI is also proud to be the inventor of the original multifold access ramp. There are knock-offs of this popular ramp by other companies, but PVI ramps have set the standard of excellence. PV View more
Specifications:
- Limited Lifetime Warranty
- Separates into Two Pieces for Easy Carrying

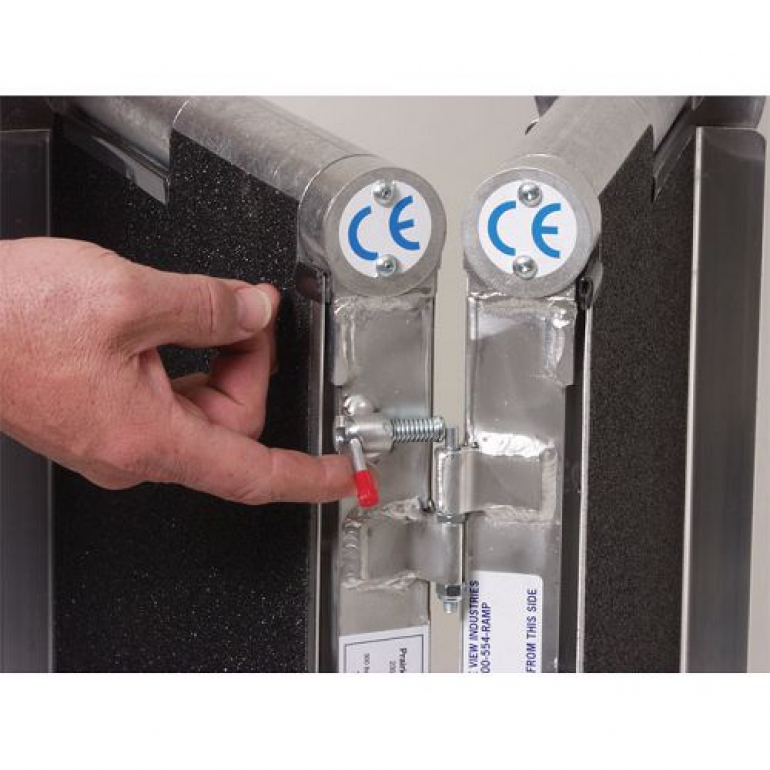

- Rotation of Pin Either Unlocks or Locks the Ramp Sides Together Without Extra Tools

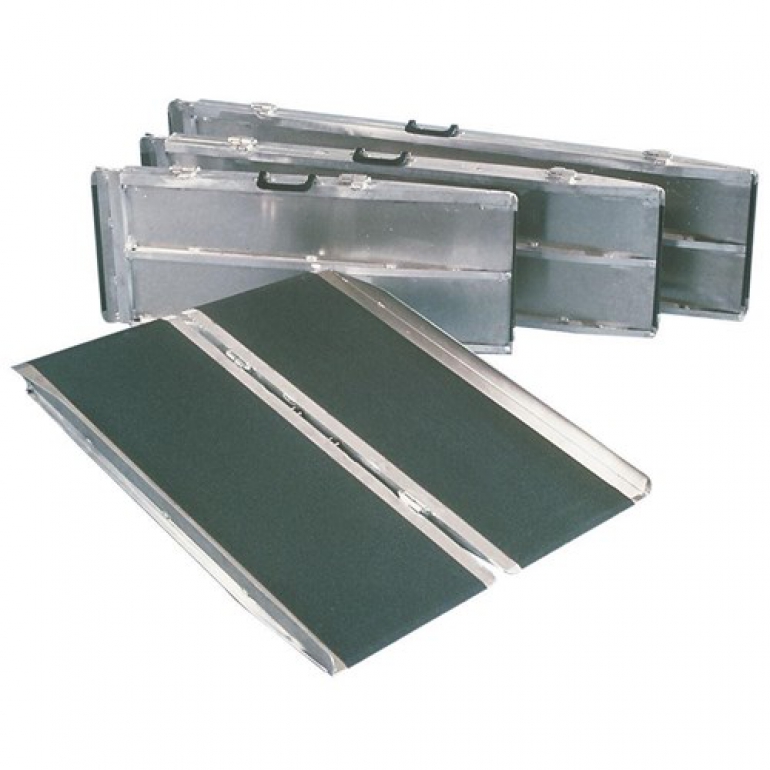

- Folds, Carries Like a Suitcase
- Closure Strap Locks Ramp Panels Together
- Lightweight, Easy-to-Handle and Set Up
- Durable Welded Construction
- Safety Guide Indicates if Ramp is on a Safe Slope
- Full Platform Provides Excellent Stability
- Anti-Slip, High Traction Surface
- Accommodates Wheelchairs and Scooters with Various Wheel Configurations
- Safety DVD and Steel Security Pins Included
- This Ramp Has Been Tested at a 3X Safety Factor
| Item Number | Length | Width | Folded Size | Weight | Capacity* |
|---|---|---|---|---|---|
| WCR530 | 5' | 30" | 32 1/4" x 16" x 9" | 34 lbs. | 800 lbs. |
| WCR630 | 6' | 30" | 38 1/4" x 16" x 9" | 40 lbs. | 800 lbs. |
| WCR730 | 7' | 30" | 44 1/4" x 16" x 9" | 44 lbs. | 800 lbs. |
| WCR830 | 8' | 30" | 50 3/4" x 16" x 9 1/2" | 52 lbs. | 800 lbs. |
* Maximum Ramp Capacity: 400 lbs. Single axle - 800 lbs. Two axles.
